Playfield Body Bottom Plexiglas

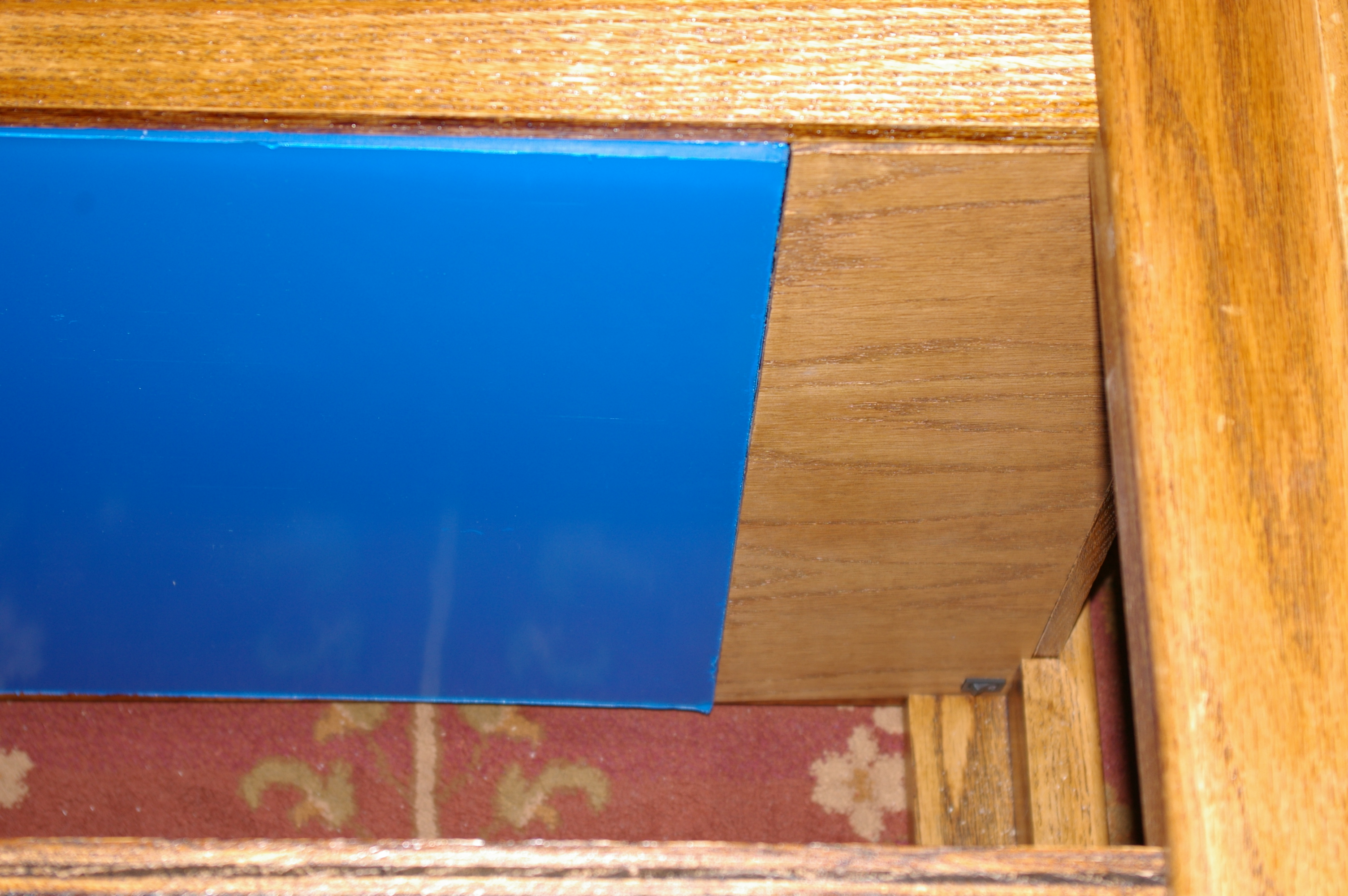

Bottom Plexi



I used the jointer to trim down the piece of Plexiglas for the bottom. I've got some clips on order that are similar to ones found on picture frames that can rotate out of the way for easy removal of the bottom plates so bulbs and fuses can be changed if needed. I cut the wooden parts of the plate wrong, the wood grain should have been facing the other direction. Both boards warped slightly, but a little creative engineering and the clips will straighten them out. Without those clips, the bottom plate is a mess!
